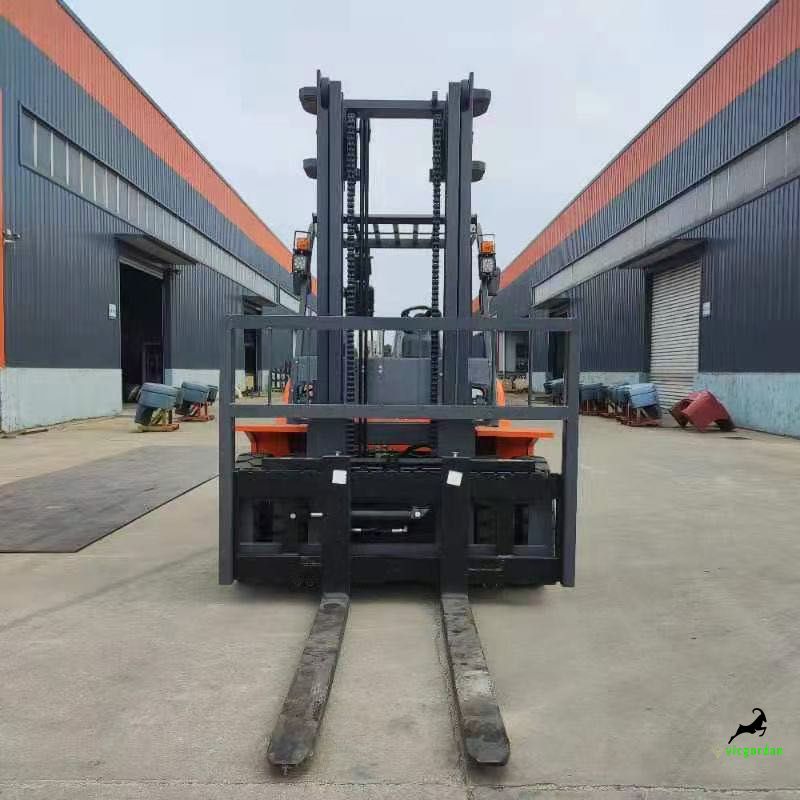

HL diesel 5-10 ton forklift

5 ton diesel forklift with Japan engine or china engine

6 ton diesel forklift with Japan engine or china engine

7 ton diesel forklift with Japan engine or china engine

8 ton diesel forklift with Japan engine or china engine

10 ton diesel forklift with Japan engine or china engine

with 2 stage 3 m mast

LED light

pneumatic tire or solid tire

toyouta seat

Cascade fork

side shift

option:

Full free mast

3 stage mast

Model	FD50	FD60	FD70	FD80	FD100
Power	Diesel	Diesel	Diesel	Diesel	Diesel
Rated capacity	5000	6000	7000	8000	10000
Load center distance	600	600	600	600	600
Driving mode	Seat driving	Seat driving	Seat driving	Seat driving	Seat driving
Fork length	1220	1220	1220	1220	1220
Overall length(Without fork)	3510	3560	3600	3600	4277
Width	1970	1970	1970	1970	2245
Closed mast height	2450	2450	2450	2450	2870
Overhead guard height	2500	2500	2500	2500	2570
Extended mast height	4600	4600	4600	4600	4293
Wheelbase	2250	2250	2250	2250	2800
Front overhang	600	600	600	600	718
Front tread	1470	1470	1470	1470	1600
Rear tread	1700	1700	1700	1700	1700
Minimum ground clearance	230	230	230	230	250
Lifting height	3000	3000	3000	3000	3000
Free lifting height	210	210	210	210	210
Minimum turning radius	3240	3300	3370	3370	3650
Minimum right angle aisle width	5230	5310	5390	5390	5540
Mast tilt angle (front/rear)	6/12°	6/12°	6/12°	6/12°	6/12°
Full-load maximum lifting speed	500	500	500	500	330
Full-load maximum travel speed	24	24	24	24	20
Gradeability(load)	15	15	15	15	15
Operating weight	8200	8900	9600	10350	12410
Tire no. (F/R)	4/2	4/2	4/2	4/2	4/2
Tire type (F/R)	8.25-15/8.25-15	8.25-15/8.25-15	8.25-15/8.25-15	8.25-15/8.25-15	9.00-20/9.00-20
Brake/service brake	Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal
Parking brake	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical
Battery voltage/capacity	2-12/80	2-12/80	2-12/80	2-12/80	2-12/80
Engine brand	Isuzu
Engine model	6BG1
Cylinder number	6
Displacement	6.494
Rated power/speed	82.4/2000
Rated torque/speed	416/1600
Gearbox gearshift number (F/R)	2/2
