5 Ton Spider Crane

Home - Products - Crane - Mini Crane - 5 Ton Spider Crane

  • 5 Ton Spider Crane
  • 5 Ton Spider Crane
  • 5 Ton Spider Crane
  • 5 Ton Spider Crane
  • 5 Ton Spider Crane
  • 5 Ton Spider Crane

5 Ton Spider Crane

  • Features
  • Specifications
  • Picture

Description of 5 Ton Spider Crane


A 5 ton spider crane is a heavy-duty lifting machine that is designed for use in a variety of industrial and commercial applications. These cranes are capable of handling loads up to 5 tons (10,000 lbs) and are often used in construction, manufacturing, and warehousing settings.


One of the key features of a 5 ton spider crane is its compact size and maneuverability. These cranes are typically mounted on wheels or tracks, and can easily be moved around a job site. They are also equipped with

a telescoping boom and multiple pulleys, which allow them to reach high and low areas with ease.


Another advantage of a 5 ton spider crane is its ability to lift and move heavy loads in tight spaces. These cranes are equipped with a variety of attachments, including slings, hooks, and clamps, which allow them to lift and move a wide range of materials and objects. They are also designed with safety in mind, featuring multiple safety systems to prevent accidents and injuries.


In terms of power, a 5 ton spider crane is typically equipped with a diesel engine. Diesel engines offer more power and are better suited for outdoor use, making them an ideal choice for heavy-duty lifting applications.


One of the main benefits of a 5 ton spider crane is its versatility. These cranes can be used in a wide range of industries and applications, including construction, manufacturing, warehousing, and more. They are also ideal for use in confined spaces, such as warehouses and factories, as they can easily maneuver through tight spaces and lift heavy loads without taking up a lot of room.


Overall, a 5 ton spider crane is a valuable tool for any company or individual that needs to lift, move, and place heavy loads in tight spaces. These cranes are compact, maneuverable, and versatile, making them an ideal choice for a wide range of applications.


Features of a 5 Ton Spider Crane:


1、Compact size and maneuverability: 5 ton spider cranes are designed to be compact and easy to move around a job site. They are typically mounted on wheels or tracks, and are equipped with a telescoping boom and multiple pulleys to allow them to reach high and low areas with ease.


2、Wide range of attachments: 5 ton spider cranes are equipped with a variety of attachments, including slings, hooks, and clamps, which allow them to lift and move a wide range of materials and objects.


3、Safety features: 5 ton spider cranes are designed with safety in mind, featuring multiple safety systems to prevent accidents and injuries. These may include overload protection, emergency stop buttons, and other safety features.


4、Diesel power: 5 ton spider cranes are typically equipped with a diesel engine. Diesel engines offer more power and are better suited for outdoor use, making them an ideal choice for heavy-duty lifting applications.


5、Versatility: 5 ton spider cranes can be used in a wide range of industries and applications, including construction, manufacturing, warehousing, and more. They are also ideal for use in confined spaces, such as warehouses and factories, as they can easily maneuver through tight spaces and lift heavy loads without taking up a lot of room.


Specifications of 5 Ton Spider Crane


ModelVSC100
Specification5.00t x 2.0m
Maximum Working Radius16m x0.21t
Maximum Ground Lifting Height16.8m
Winch DeviceHook Speed12m/min (4 fall)
RopeO12mmx 120m
Telescopic SystemBoom TypeFull automatic 5 section
Boom Length4.7m~16.5m
Telescopic Length/Time11.7m/54sec (speed up 41sec)
Up and DownsBoom Angle/Time0~80° /24.5sec
Slew SystemSlew Angle/Time360° continuous/2.1rpm
OutriggerOutrigger Active Formmanual adjustment for the 1 section.Automatic for the 2,3 section
Maximum Extended Dimensions5670mm x 5510mm x 5030mm
Traction systemWalking WayHydraulic motor
Walking Speed0~1.5km/ h
Grade Ability20°
Ground Length x Width1720mm x 320 mm x 2
Ground Pressure49.0kpa ( 0.50 kgf/cm2
Diesel EngineModel4TNV88(YANMAR)
Displacement2.19L
Maximum Output25.2kw/2200min-1
Starting MethodElectric starting
Fueldiesel
Fuel tank capacity100L
Electric MotorModelYYB160M-4 (three phase AC )
Working Voltage380V (50 Hz)
Power11Kw
DimensionLength x Width x Height4950mm x 1560mm x 2235mm
WeightVehicle Weight6000kg
Safety DevicesTorque limiter、Status lights Alarm device、Emergency buttonx Overturn-preventing system、interlock control system、Onekey leveling

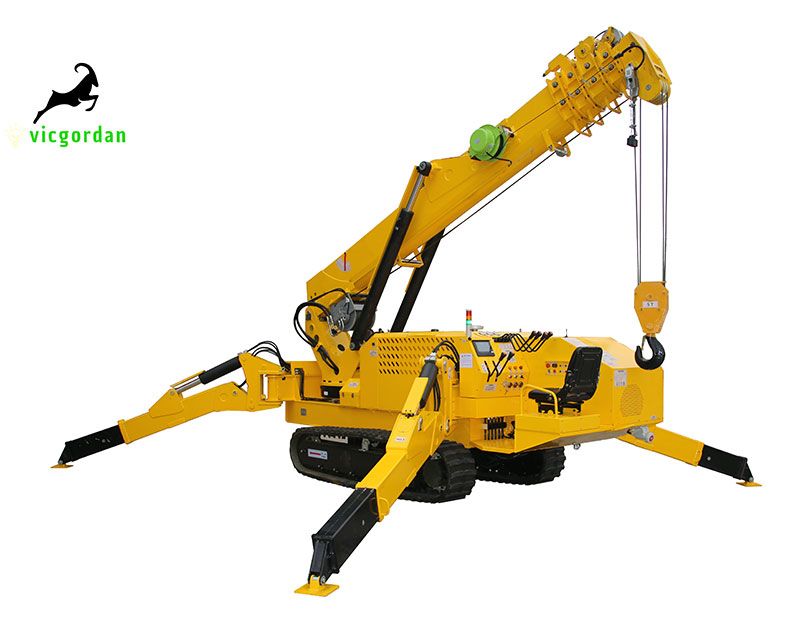

Picture of 5 Ton Spider Crane


5 Ton Spider Crane
