40 Ton Reach Stacker

40 Ton Container Reach Stacker use to container loading and unloasing. Designed to lift and transport containers between 20 ft and 40 ft in length and at weights up to 40 tonnes.

  • Features
  • Specifications
  • Picture

Vicgordan Reach Stacker is specifically designed for 20ft and 40ft containers, mainly used in small or mid-size ports, intermodal terminals, to transfer and stack various containers and other materials. Compare with forklift, the Reach Stacker has more advantage in above application such as: more flexible, easier to operate, more stable, lower tyre pressure, higher stacking and storage capacity etc. It can also be operated across over containers.

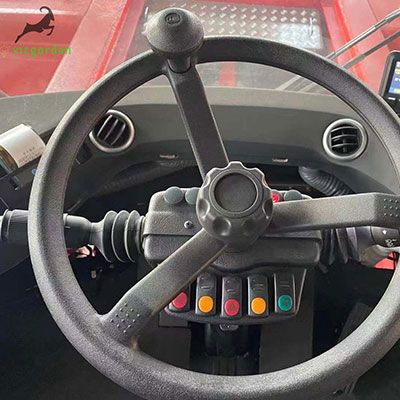

Technical Description

Maximum travel speed is 25 k.p.h. loaded,28 k.p.h. unloaded, and maximum climbing gradient is 30.9%.

The handler has automatic self-levelling and sway damping, 95°/185° rotation and +/- 800 mm sideshift.

Engine: The trucks are fitted with a Cummins 11 litre liquid cooled, 6 cylinder turbocharged direct injection diesel engine which develops a rated output of 250 kW maximum engine torque is attained at 1100 rpm. The engine draws fuel from two tanks fitted in the chassis.

Kessler drive axle, proven quality for heavy duty trucks, wide track, 2-stages reduction gear box, strong axle body optimized for heavy loading condition. Wet disk driving brake is free of maintenance.

This drive axle performs under shock load condition ensuring high safety and long life time .

Port environments are harsh; operators need a container handler that they can depend on 24/7. The proven VICGORDAN spreader is fast and efficient and allows operators to remain productive in challenging port conditions. Features such as a +/-800mm side shift, optional powered pile slope and powered dampening all combine to make picking up containers easier.

Max. loadt40
Outreach and lift weightOutreach (1st row, between front edge of tyre and middle of container)mm1495-2045
Lift weightt40
Max. Hoisting heightmm9188
Max. tilt angle°42
Max. Hoisting speed (Non-load/load)mm/s160/120
Max. Descending speed (Non-load/load)mm/s90/120
Overall lengthmm10467
Overall widthmm6072/3545
Overall heightmm4780
Wheel basemm6000
Track width (Front/Rear)mm2453/2470
Min. turning radiusmm8200
Min. ground clearance (Non-load)mm360
Overall weight (Non-load)kg65000
Front axle load capacity (Non-load/Load)kg25072/88970
Rear axle load capacity (Non-load/Load)kg39248/16030
Max. travel speed (Non-load/Load)km/h12/6
Max. grade ability (Non-load/Load)%17/10
Diesel EngineManufacture-COMMINS
Type-Turbocharging, water-air intercooler
Rated powerKw r/min179/2200
Max. torqueN. m1028/1500
Type-Counter shaft
Operation way-Electrohydraulic shift
Gear (forward/backward)-Forward 3/backward 3
Drive AxleManufacture-XUZHOU HUACHEN
Steering AxleManufacture
Type-Transverse cylinder, welding
Steering GearManufacture-ZHENJIANG Hydraulic
Braking SystemService brake type-Wet multi-disc brakes
Service brake adjust type-Hydraulic
Parking brake type-Caliper disc brake
Parking brake operate type-Mechanical
Front tyre model/amount-18.00-25-40PR/4
Rear tyre model/amount-18.00-25-44PR/2
Air pressureMpa1
Max. loadT40
20ft container
Rotation angle°Clockwise: 26 Counterclockwise: 26
Lateral driftmm±650
