TC LPG forklift 2-4 T

Adhering to the concept of continuous improvement and pursuit of high-quality products, we have made a lot of improvements in the reliability, control performance and appearance of this series of products, to ensure that the comprehensive performance of the products is at the high-end level of the industry, far ahead of other mainstream domestic brand products and close to the level of Japan.

Inquire Now

Features
Specifications

The most reasonable system matching after repeated verification

Selection of domestic first-line brands or imported brands parts

After 1000 hours of continuous enhancement test

2 ton LPG forklift with Japan engine or china engine

2.5 ton LPGforklift with Japan engine or china engine

3 ton LPGforklift with Japan engine or china engine

3.5 ton LPGforklift with Japan engine or china engine

with 2 stage 3 m mast

LED light

pneumatic tire or solid tire

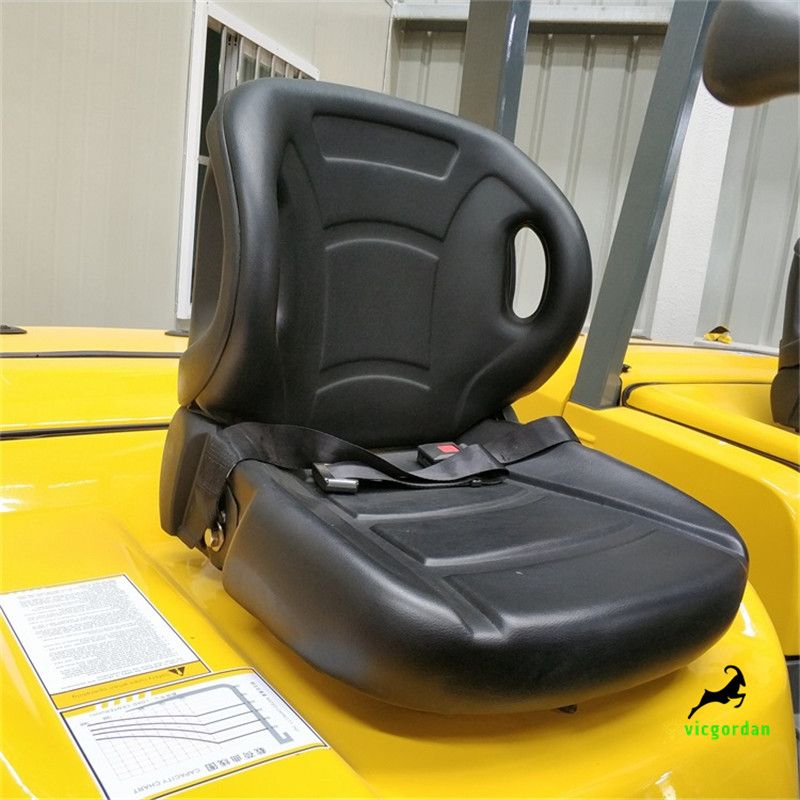

toyouta seat

Cascade fork

side shift

option:

Full free mast

3 stage mast

	Model	UNIT	FG20	FG25	FG30	FG35
Performance	Power Unit		gasoline	gasoline	gasoline	gasoline
	Operator Type		Driver/seat	Driver/seat	Driver/seat	Driver/seat
	Transmission Box Type		Electronic hydraulic transmisson
	Rated Capacity	kg	2000	2500	3000	3500
	Load Center	mm	500	500	500	500
	Max. Lifting Height	mm	3000	3000	3000	3000
	Mast Tilting Angle (Fwd/Bwd)	deg	6/12	6/12	6/12	6/12
	Free Lifting Height	mm	150	150	150	150
	Turning Radius	mm	2170	2240	2400	2400
	Lifting Speed (Loaded/Unloaded)	mm/s	650/710	650/710	630/690	630/690
	Lowering Speed (Loaded/Unloaded)	mm/s	480/450	480/450	480/450	480/450
	Travelling Speed (Loaded/Unloaded)	km/h	17/19	17/19	19/20	19/20
	Max. Gradeability (Loaded)	%	21	21	21	21
	Max. Drawbar Pull (Loaded)	n	18	18	18	18
Dimensions	Overall length (without fork)	mm	2605	2605	2705	2760
	Overall Width	mm	1150	1150	1240	1240
	Overhead Guard Height	mm	2090	2090	2100	2100
	Fork Size (LxWxT)	mm	1220×122×40	1220×122×40	1220×125×45	1220×125×50
	Mast Height (Fork lowered)	mm	2040	2040	2140	2140
	Truck Weight	kg	3310	3620	4310	4610
	Tyre Size (Front/Rear)		7.00-12-12PR/6.0-9-10PR		28×9-15-14PR/6.5-10-10PR
	Fuel tank capacity	L	70	70	70	70
Engine	Brand		NISSAN	NISSAN	NISSAN	NISSAN
	Model		K21	K21	K25	K25
	Rated Power	kw/rpm	31.2/2250	31.2/2250	37.4/2300	37.4/2300
	Rated torque	n-m/rpm	143.7/1600	143.7/1600	176.5/1600	176.5/1600
	Number of cylinder		4	4	4	4
	Displacement		2.06	2.06	2.49	2.49
