2 Ton Diesel Forklift

Designed to handle heavy loads with ease, the 2-ton diesel forklift is ideal for a wide range of applications, including warehouses, construction sites, and manufacturing facilities. It features a rugged chassis and a durable mast, ensuring stability and safety during operation.

Inquire Now Next Product

Features
Specifications

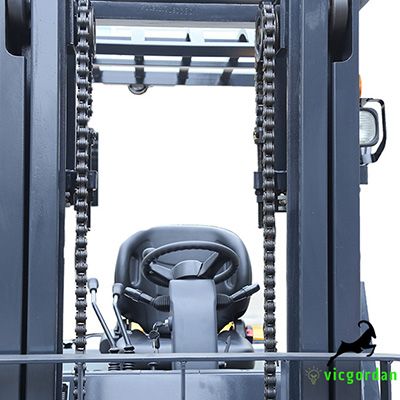

Equipped with advanced ergonomic features, the 2-ton diesel forklift offers excellent operator comfort, reducing fatigue and improving productivity. The spacious operator cabin provides a clear view of the surroundings, enhancing safety and maneuverability.

The 2-ton diesel forklift is powered by a high-performance diesel engine, delivering superior torque and acceleration. This enables quick and efficient movement of goods, increasing operational efficiency and reducing downtime.

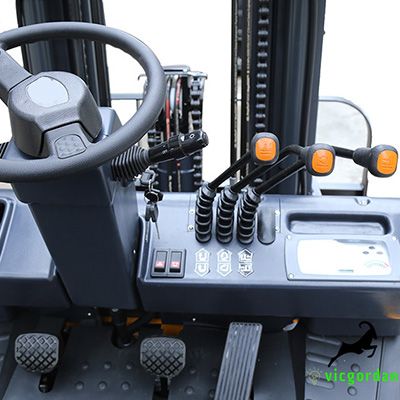

Our forklift is equipped with precise and responsive hydraulic controls, allowing for smooth and precise handling of loads. The intuitive controls make it easy for operators to navigate through tight spaces and stack goods with precision.

2-ton diesel forklift is equipped with comprehensive safety features. These include an advanced braking system, ergonomic seat belts, and excellent visibility from the operator cabin.

General	1	Manufacturer		BeiJing Vicgordan Industrial Co., Ltd
	2	Model		FD20C	FD20C	FD20C	FD20C	FD20C	FD20C	FD20C
	3	Power Type		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
	4	Rated Load Capacity	Q(kg)	2000	2000	2000	2000	2000	2000	2000
	5	Load Centre	C(mm)	500	500	500	500	500	500	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	100	100	100	100	100	100	100
	8	Fork Size (L×W×T)	mm	1070×120×40	1070×120×40	1070×120×40	1070×120×40	1070×120×40	1070×120×40	1070×120×40
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	479	479	479	479	479	479	479
	11	Rear Overhang	X2(mm)	520	520	520	520	520	520	520
	12	Ground Clearance (Bottom of Mast)	H7(mm)	130	130	130	130	130	130	130
	13	Length to Face of Fork (Without Fork)	L1(mm)	2660	2660	2660	2660	2660	2660	2660
	14	Overall Width	B1(mm)	1150	1150	1150	1150	1150	1150	1150
	15	Mast Lowered Height	H1(mm)	2055	2055	2055	2055	2055	2055	2055
	16	Mast Extended Height (With Backrest)	H4(mm)	4070	4070	4070	4070	4070	4070	4070
	17	Overhead Guard Height	H5(mm)	2215	2215	2215	2215	2215	2215	2215
	18	Turning Radius (Outside)	Wa(mm)	2365	2365	2365	2365	2365	2365	2365
	19	Min.Aisle width for pallets	Ast(mm)	4120	4120	4120	4120	4120	4120	4120
Performance	20	Travel Speed (No Load)	km/h	19	19	19	19	19	19	19
	21	Lifting Speed (No Load/Full Load)	mm/sec	470/450	470/450	470/450	470/450	470/450	470/450	470/450
	22	Lowering Speed (No Load/Full Load)	mm/sec	350/470	350/470	350/470	350/470	350/470	350/470	350/470
	23	Max.Drawbar Pull (Full Load/No Load)	KN	17(14.5)	17(14.5)	17(14.5)	17(14.5)	17(14.5)	17(14.5)	17(14.5)
	24	Max.Gradeability (Full Load)	%	20	20	20	20	20	20	20
Chassis	25	Tyre (Front x 2)	mm	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR
	26	Tyre (Rear x 2)	mm	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR
	27	Front Tread	B2(mm)	970	970	970	970	970	970	970
	28	Rear Tread	B3(mm)	980	980	980	980	980	980	980
	29	Wheelbase	Y(mm)	1650	1650	1650	1650	1650	1650	1650
Weight	30	Total Weight	kg	3385	3385	3385	3385	3385	3385	3385
	31	Front Axle Weight Distribution (Full Load)	kg	4846	4846	4846	4846	4846	4846	4846
	32	Rear Axle Weight Distribution (Full Load)	kg	538	538	538	538	538	538	538
	33	Front Axle Weight Distribution (No Load)	kg	1354	1354	1354	1354	1354	1354	1354
	34	Rear Axle Weight Distribution (No Load)	kg	2031	2031	2031	2031	2031	2031	2031
Power & Transmission	35	Battery	V/Ah	12/90	12/90	12/90	12/90	12/90	12/90	12/90
	36	Engine Model		A498BPG-521 (II)	C490BPG-237 (II)	A498BT1-35(EuⅢ)	C490BPG -37(EuⅢ)	4d27g31-055 （III)	QC498G（II)	4C2-50V32 （III)
	37	Engine		XINCHAI	XINCHAI	XINCHAI	XINCHAI	XINCHAI	QUANCHAI	QUANCHAI
	38	Rated Output / r.p.m.	kw	45/2500	40/2650	36.8/2400	36.8/2650	36.8/2500	45/2650	36.8/2500
	39	Rated Torque / r.p.m.	N·m	193/1800	162/1800-2000	193/1600-1800	156/1800	156/1700-1900	185/1800-2000	157/1800
	40	No.of Cylinder		4	4	4	4	4	4	4
	41	Bore x Stroke	mm	98X105	98X105	98X105	90×105	90X105	90X105	90X105
	42	Displacement	cc	3168	3168	3168	2670	2670	2670	2670
	43	Fuel Tank Capacity	L	50	50	50	50	50	50	50
	44	Transmission Type		Powershift (Manual)	Powershift (Manual)	Powershift (Manual)	Powershift (Manual)	Powershift (Manual)	Powershift (Manual)	Powershift (Manual)
	45	Transmission Stage (FWD/RVS)		1/1(2/2)	1/1(2/2)	1/1(2/2)	1/1(2/2)	1/1(2/2)	1/1(2/2)	1/1(2/2)
	46	Operating Pressure (For Attachments)	Mpa	17.5	17.5	17.5	17.5	17.5	17.5	17.5

General	1	Manufacturer		BeiJing Vicgordan Industrial Co., Ltd
	2	Model		FD20J	FD20J	FD20J	FD20J	FD20J	FD20J
	3	Power Type		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
	4	Rated Load Capacity	Q(kg)	2000	2000	2000	2000	2000	2000
	5	Load Centre	C(mm)	500	500	500	500	500	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	100	100	100	100	100	100
	8	Fork Size (L×W×T)	mm	1070×120×40	1070×120×40	1070×120×40	1070×120×40	1070×120×40	1070×120×40
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	479	479	479	479	479	479
	11	Rear Overhang	X2(mm)	520	520	520	520	520	520
	12	Ground Clearance (Bottom of Mast)	H7(mm)	130	130	130	130	130	130
	13	Length to Face of Fork (Without Fork)	L1(mm)	2660	2660	2660	2660	2660	2660
	14	Overall Width	B1(mm)	1150	1150	1150	1150	1150	1150
	15	Mast Lowered Height	H1(mm)	2055	2055	2055	2055	2055	2055
	16	Mast Extended Height (With Backrest)	H4(mm)	4070	4070	4070	4070	4070	4070
	17	Overhead Guard Height	H5(mm)	2215	2215	2215	2215	2215	2215
	18	Turning Radius (Outside)	Wa(mm)	2365	2365	2365	2365	2365	2365
	19	Min.Aisle width for pallets	Ast(mm)	4120	4120	4120	4120	4120	4120
Performance	20	Travel Speed (No Load)	km/h	19	19	19	19	19	19
	21	Lifting Speed (No Load/Full Load)	mm/sec	470/450	470/450	470/450	470/450	470/450	470/450
	22	Lowering Speed (No Load/Full Load)	mm/sec	350/470	350/470	350/470	350/470	350/470	350/470
	23	Max.Drawbar Pull (Full Load/No Load)	KN	17(13.7)	17(13.5)	17(13.5)	17(13.5)	17(13.5)	17(13.5)
	24	Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Chassis	25	Tyre (Front x 2)	mm	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR
	26	Tyre (Rear x 2)	mm	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR	6.00-9-10PR
	27	Front Tread	B2(mm)	970	970	970	970	970	970
	28	Rear Tread	B3(mm)	980	980	980	980	980	980
	29	Wheelbase	Y(mm)	1650	1650	1650	1650	1650	1650
Weight	30	Total Weight	kg	3385	3385	3385	3385	3385	3385
	31	Front Axle Weight Distribution (Full Load)	kg	4846	4846	4846	4846	4846	4846
	32	Rear Axle Weight Distribution (Full Load)	kg	538	538	538	538	538	538
	33	Front Axle Weight Distribution (No Load)	kg	1354	1354	1354	1354	1354	1354
	34	Rear Axle Weight Distribution (No Load)	kg	2031	2031	2031	2031	2031	2031
Power & Transmission	35	Battery	V/Ah	12/90	12/90	12/90	12/90	12/90	12/90
	36	Engine Model		C240NKFC-01 (EuⅢ)	4TNE92 (EuⅢ & EPAⅢ)	4TNE98 (EuⅢ & EPAⅢ)	Mitsubishi S4S（EuⅢ）	4TNV94L-NHZ (EuⅢ)	4JG2PE-01
	37	Engine Manufacturer		ISUZU	YANMAR	YANMAR	Mitsubishi	YANMAR	ISUZU
	38	Rated Output / r.p.m.	kw	34.5/2500	33/2450	42.1/2300	35.3/2250	34.1/2400	44.9/2450
	39	Rated Torque / r.p.m.	N·m	139/1800	150/1600	177.6～196.3/1700	177/1700	200/1375	184.7/1700
	40	No.of Cylinder		4	4	4	4	4	4
	41	Bore x Stroke	mm	86×102	92×110	98×110	94x120	94x110	95.4×107
	42	Displacement	cc	2369	2659	3318	3331	3053	3059
	43	Fuel Tank Capacity	L	50	50	50	50	50	50
	44	Transmission Type		Powershift ( Manual)	Powershift ( Manual)	Powershift ( Manual)	Powershift ( Manual)	Powershift ( Manual)	Powershift ( Manual)
	45	Transmission Stage (FWD/RVS)		1/1(2/2)	1/1(2/2)	1/1(2/2)	1/1(2/2)	1/1(2/2)	1/1(2/2)
	46	Operating Pressure (For Attachments)	Mpa	17.5	17.5	17.5	17.5	17.5	17.5
